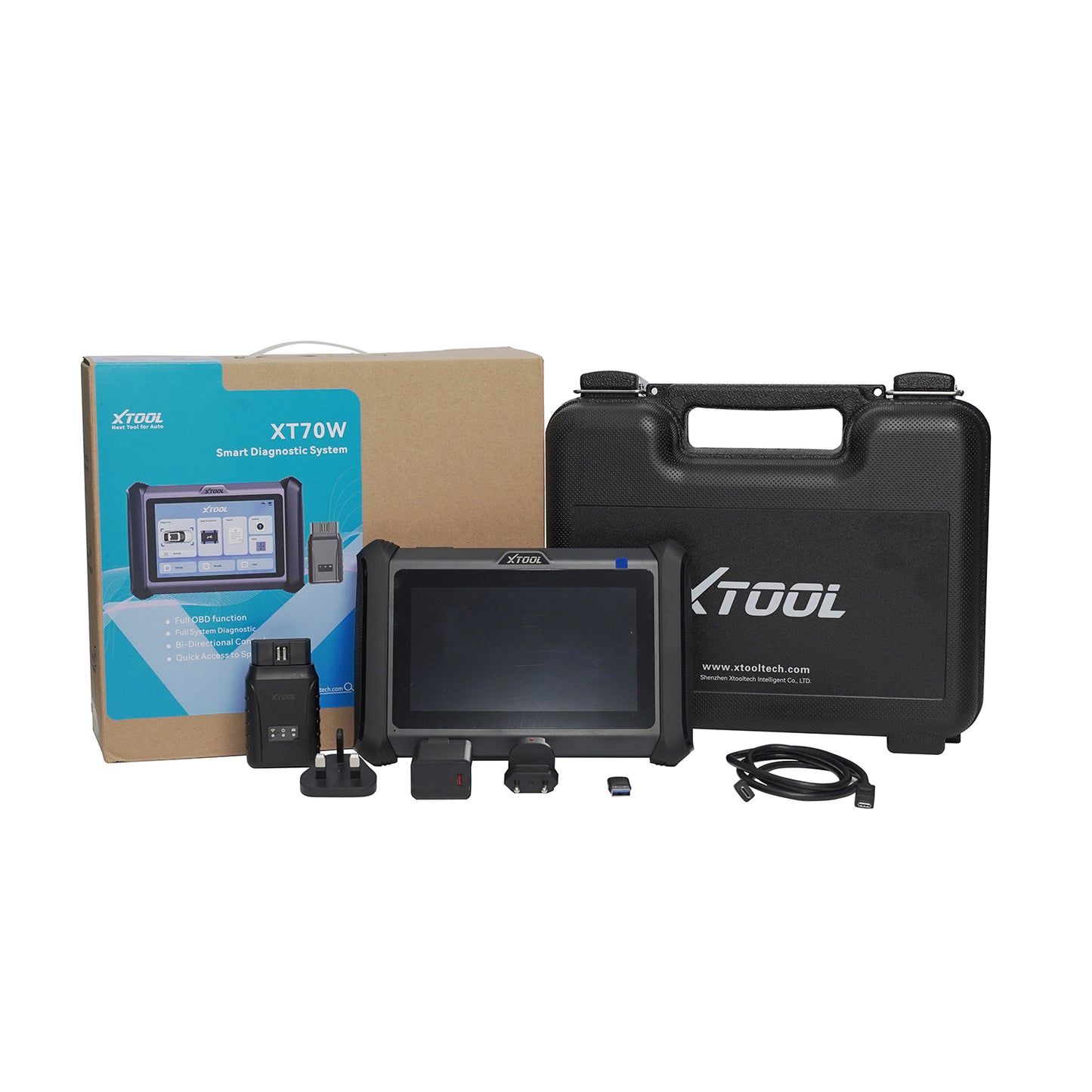

XTOOL XT70W Smart Diagnostic System

XT70W is an automotive smart diagnostic system with a 7-inch LCD display and Android 10 OS, which is designed for mechanics, electricians, and car maintenance shops. It supports automotive diagnostics for full-system, including reading ECU version information, reading fault codes, live data, and freeze frames. 30+ common special functions are supported, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset. 98% vehicle coverage, work on more 100 brands, 10000 cars.

Description
● Read/clear codes for all available systems
● Display live data in text, & graph for easy data review
● Export the data streams over a certain period of time as CSV files
● Support active test and special functions under system menu
● Performe to bleed the brake system to restore ABS brake sensitivity.
● Clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
● Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.
● Compatible with Videoscope with optional purchase.
V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP

Parameters
Operating System：Android 10
Processor：4 Core 1.50GHz
Memory：2G RAM, 64G ROM
Display：7-inch, 1024×600P
Communication Method：WiFi
Connectivity：Type-C, USB 3.0
Battery：2500mAh, 7.2V
Auto Input/Output：Microphone, Speaker
Working Voltage：9-32V
Working Temperature：0 to 40℃
Storage Temperature：-10 to 50℃
Humidity：<90%
Compatible Protocol：CANFD, DOIP
Dimension (L×W×H)：234.6×31.0×149.0 mm
Camera：8.0 Megapixel, AF with Flashlight

Main Units
The Tablet
Charger for Tablet
Charger US Adapter
Charger EU Adapter
Charger UK Adapter

Accessories
Color Carton
Packing List
Certificate of Quality
Tool Case
Quick Start Guide

Test Connectors
USB Cable
