XTOOL E2 PRO EV Smart Diagnostic System for New Energy Vehicles/Electric Vehicles

Want to Know Why XTOOL TECH is Your Best Partner? Our Core Competitiveness Has the Answer:

1. Exclusive Technical Certification

    China's only automotive diagnostic tool developer with Apple MFi certification, compatible with premium EVs (e.g., Tesla, Mercedes-Benz).

2. Full-Cycle Diagnostic Ecosystem

    Covers basic diagnostics, ECU programming, smart driving calibration, with AI-powered repair database (30% efficiency boost).

    EV-specific solutions: "Full-vehicle + battery" detection (±0.5% accuracy), integrated battery recycling and used-car valuation.

3. Advanced Manufacturing

    10,000㎡ automated production base, international supply chain, 500k-unit annual capacity, 72-hour rapid response.

4. IoT Data Ecosystem

    SmartLink Platform: Global largest remote diagnostics network (730k orders in 2023), enabling UBI insurance and blockchain maintenance records.

5. Global Presence

    Exports to 13 countries, tech centers in EU/Middle East/Southeast Asia, partners include DiDi Global and SAIC.

XTOOL E2 PRO EV Smart Diagnostic System

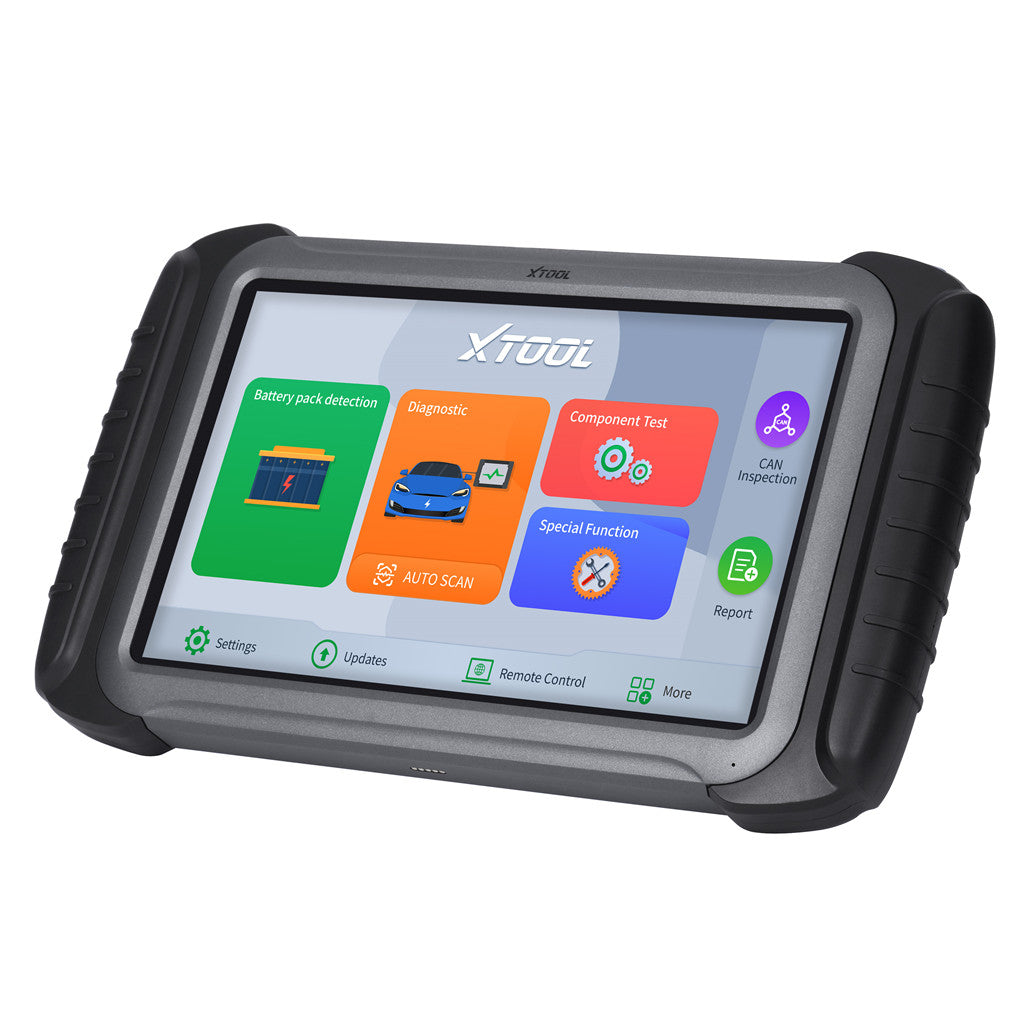

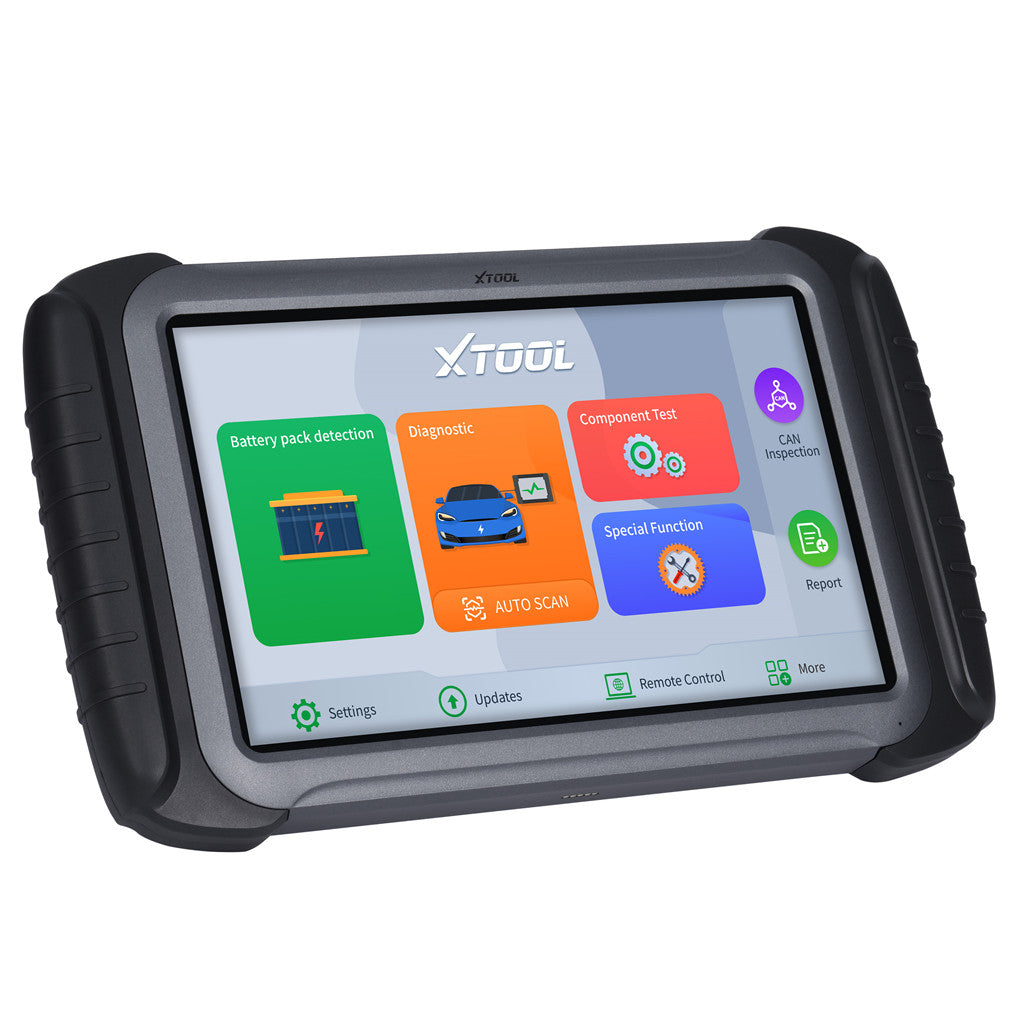

E2 Pro is a next-generation smart diagnostic platform designed for BEV, PHEV, and REEV vehicles. Focused on the rapidly growing EV market, it provides car mechanics with a comprehensive solution for full-system diagnostics, battery pack analysis, component testing, BMS repair, and more. In addition to EV diagnostics, E2 Pro also supports general gasoline vehicles, offering 48 essential special functions such as throttle matching, ABS bleeding, maintenance light reset, EPB testing, and SAS calibration.

Description

● Comprehensive diagnostic platform for electric, gasoline, diesel, and hybrid vehicles across U.S., European, Asian, and Chinese markets.

● OEM-level diagnostics for Tesla with dedicated connectors, supporting DTC reading/clearing, live data streaming, bi-directional control, and special functions.

● Quickly analyzes high-voltage EV systems, allowing fault code retrieval, clearing, and real-time data monitoring.

● Battery pack diagnostics available via OBD or direct connection with specialized cables and jumpers to track voltage and temperature at the cell level.

● Easily expands battery pack compatibility with a CAN detection function, enabling support for new models from different manufacturers.

● One-click off-vehicle component testing, including compressor, DCDC, OBC, and 48V motor, streamlining repair verification.

● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover, and BMW, as well as CAN FD for GM.

● Offers fault code guidance for VAG and BMW, offline programming for Ford, Lincoln, and Mazda, and online coding & programming for VAG, BMW, and Mercedes-Benz.

● Seamlessly switch between EV diagnostic mode and standard vehicle diagnostic mode for maximum flexibility.

Parameters
Operating System：Android 10.0
Communication Method：Wi-Fi, Wired
Processor：8 Core, up to 2.2 GHz
Connectivity：USB Type-C
Memory：8G+256G
Working Voltage：9-36V
Display：10.1-inch, 1920x1200px
Battery：6400 mAh, 7.2V
Camera：8.0 Megapixel, AF with Flashlight
Working Temperature：0 to 40℃
Auto Input/Output：Microphone, Speaker
Storage Temperature：-40 to 60℃
VCI Screen Size：3.97-inch
Compatible Protocol：CANFD, DoIP, Dual CAN, etc.

Accessories

• Carton
• Tool Case
• Packing List
• Certificate of Quality
• Quick Start Guide

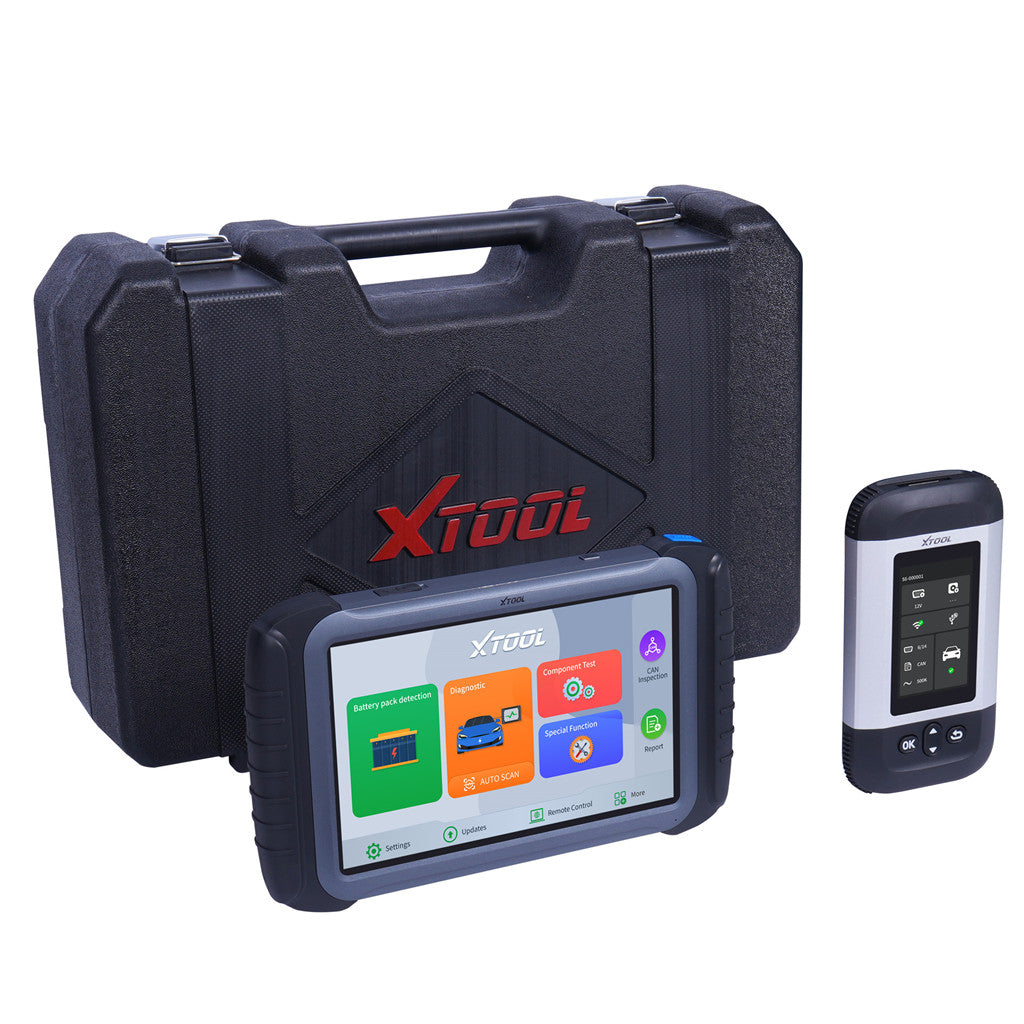

Main Units

• Tablet
• VCI Box
• Power Supply(PD)
• Charging Adapter(EU)
• Charging Adapter(UK)
• Data Cable (Type-C to Type-C)
• Adapter (Type-C to Type-A)
• Data Cable(Type-C to Type-B)
• PD-12V Power Cable ( Type-C to DC)
• Cigar Lighter Cable

Other parts

• M600 Programmer
• M605 PCBA
• XTA004 Cable
• Charging Dock

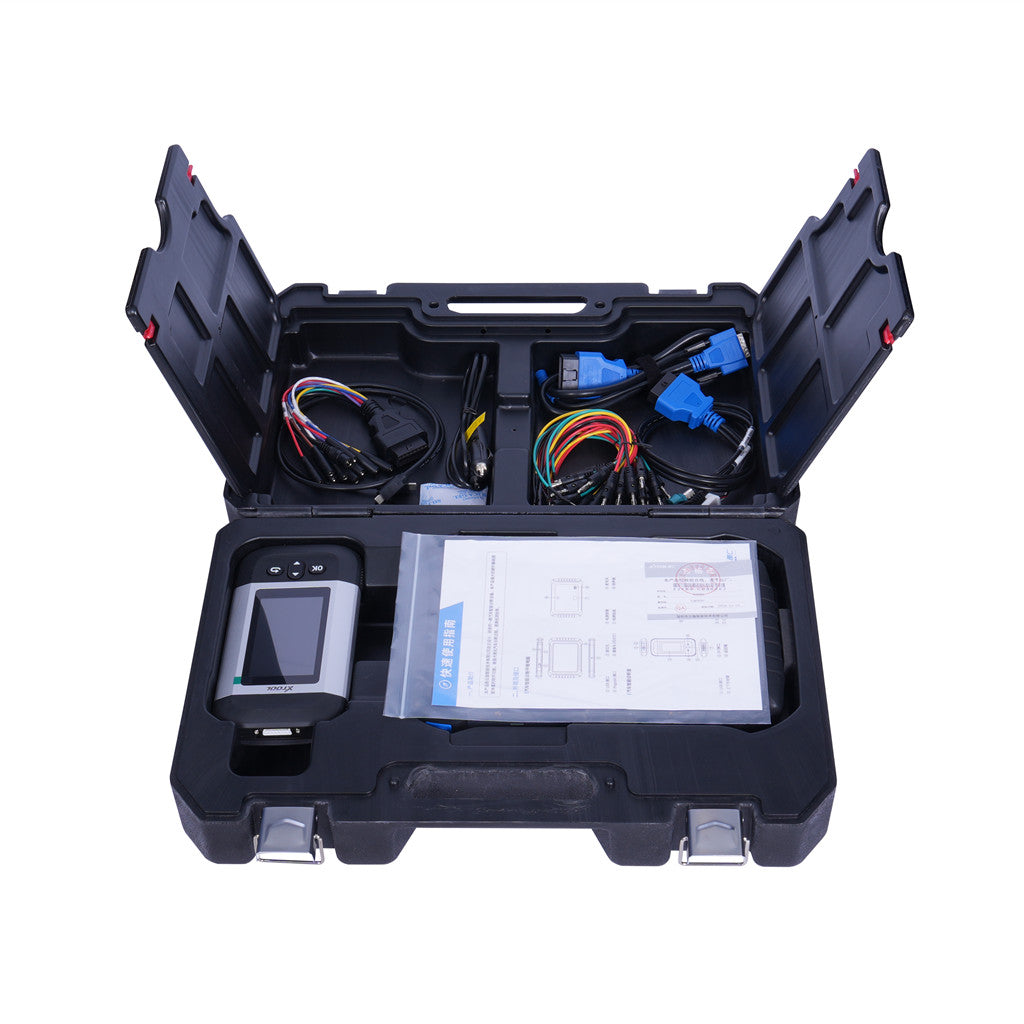

Test Connectors

• Main Cable (DB15 to OBD-Ⅱ)
• Universal Jumper Adapter
• Universal Jumper Cable
• J1E04
• L1E01(Compressor Tester Cable)
• L1E02 (Tesla LAN Cable)
• L1E03 (Tesla CAN Cable)
