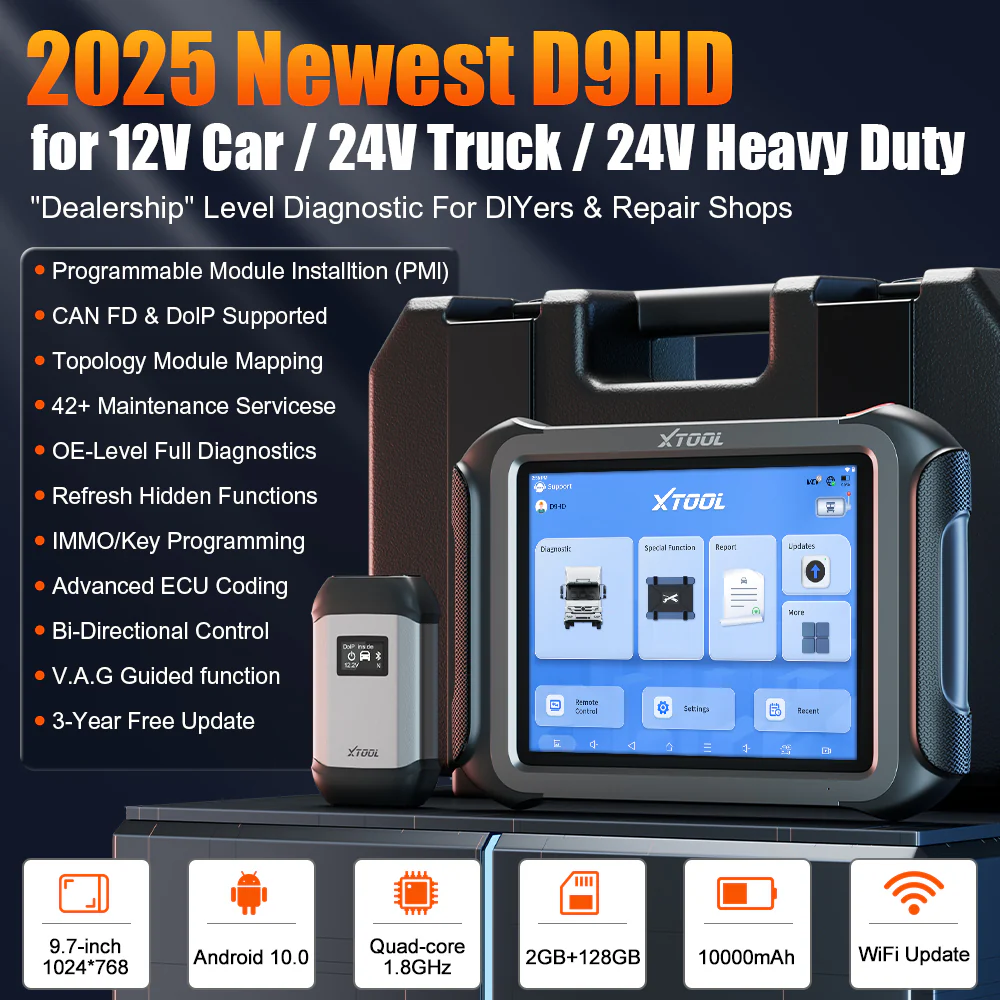

XTOOL D9HD Smart Diagnostic System

Name: XTOOL D9HD Smart Diagnostic System
Brand: XTool
Price: 2190.0 USD
Availability: InStock

$2,190.00 USD

~~$3,665.00 USD~~ $2,190.00 USD

Sale Sold out

Product variants

Quantity

XTOOL Intelligent Truck Diagnostic Tools are made for technicians which support OEM Level diagnosis and support rich special functions and full vehicle coverage lists.

The simple Ul design and one-click upgrade brings uers a better experience.

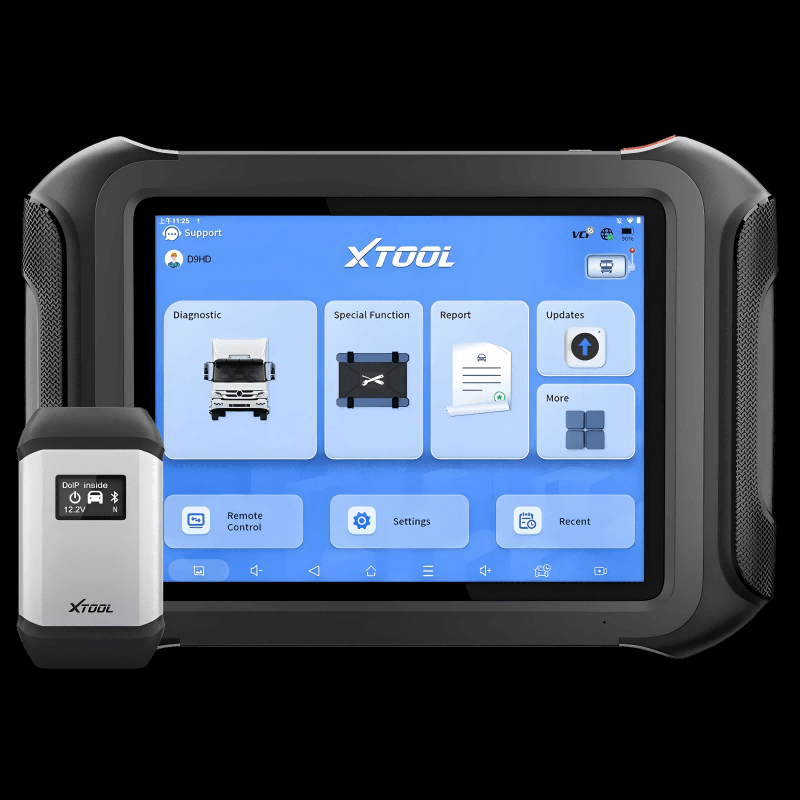

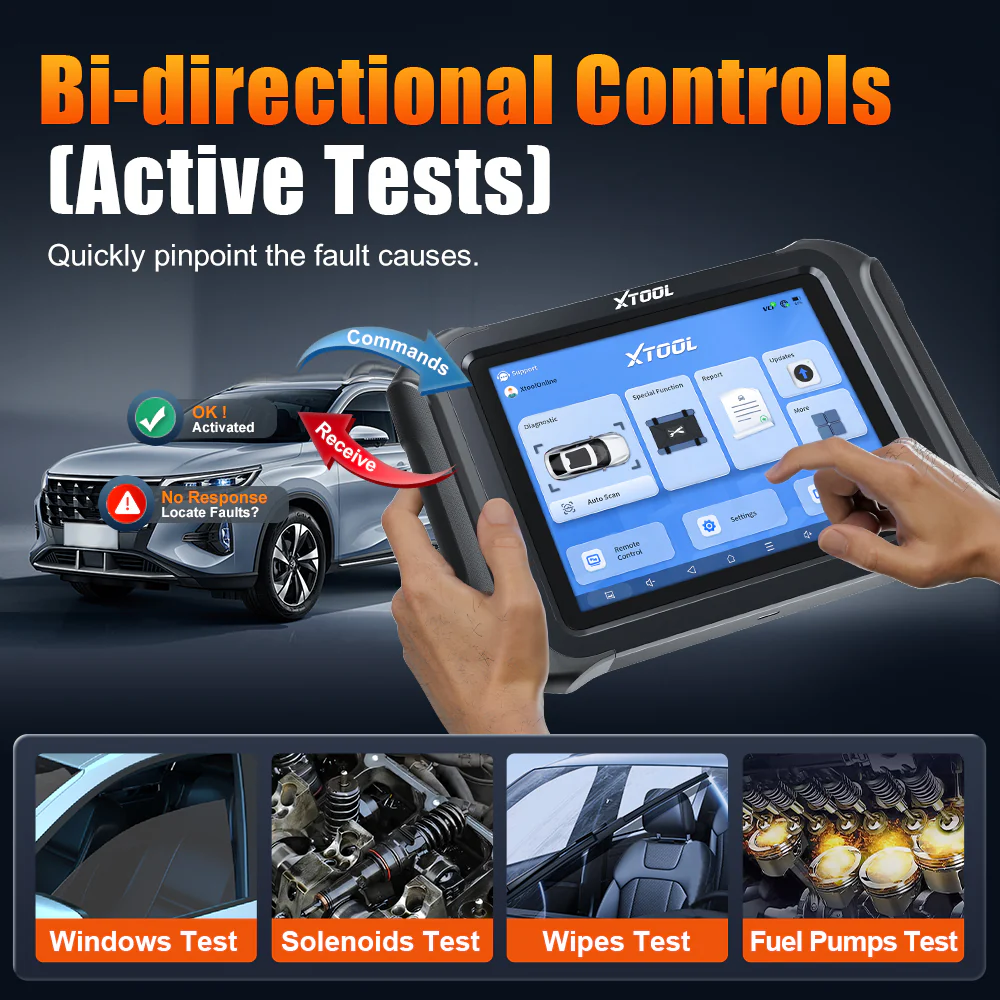

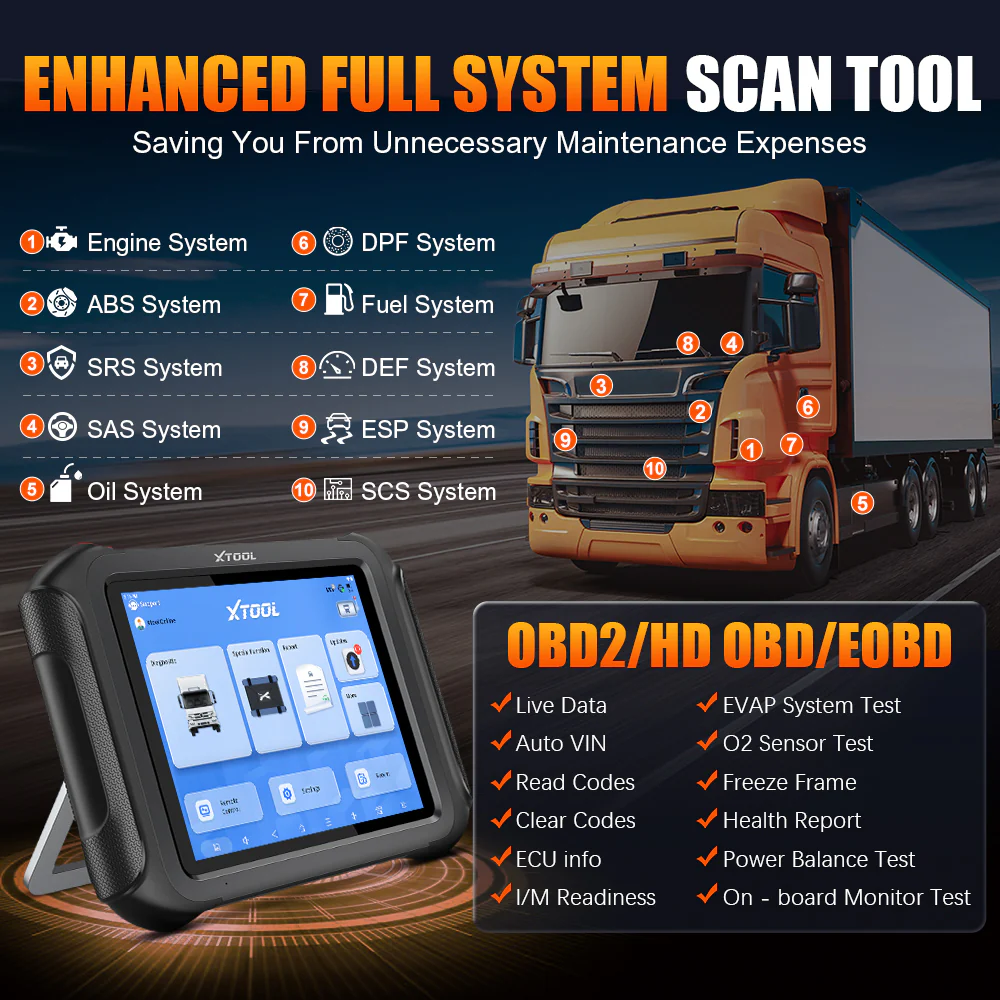

D9HD is an automotive smart diagnostic system designed for mechanics, electricians, and car maintenance shops. It supports full-system diagnostics for passenger cars, commercial vehicles, and heavy-duty trucks, including reading ECU version information, reading fault codes, live data, freeze frames, and bi-directional control tests. 42 common special functions, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset are supported. Under the system menu, you can also explore a wealth of special functions. 98% vehicle coverage, work on more than 85 brands, 10000 cars.

Description

4-core processor/ 4+128G memory
9.7-inch capacitive touch screen (1024x768 P)/ android 10.0
12V and 24V passenger cars, commercials, hybrid and electric vehicles, light truck and heavy duty
Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

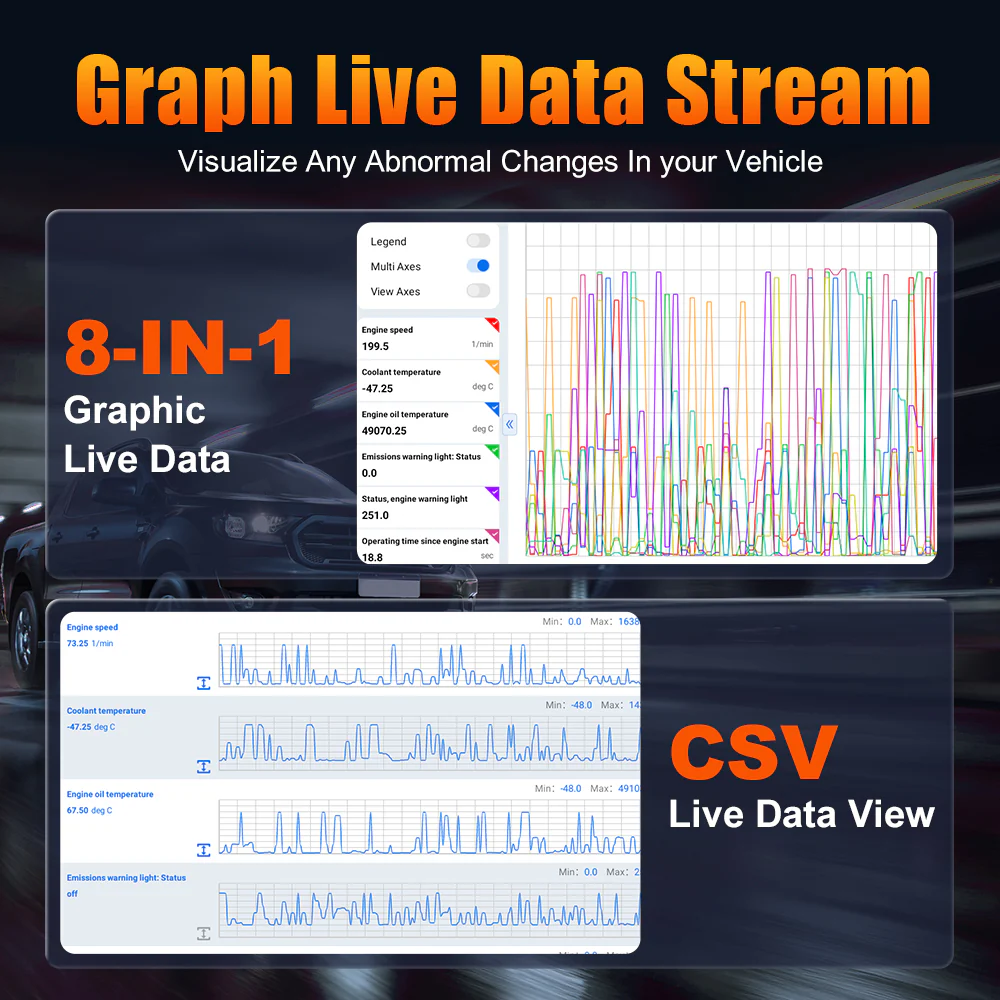

Displays live data in text, graph, analog and digital gauge for easy data review and analysis
Records and playbacks live data to pinpoint troubles of sensors and components

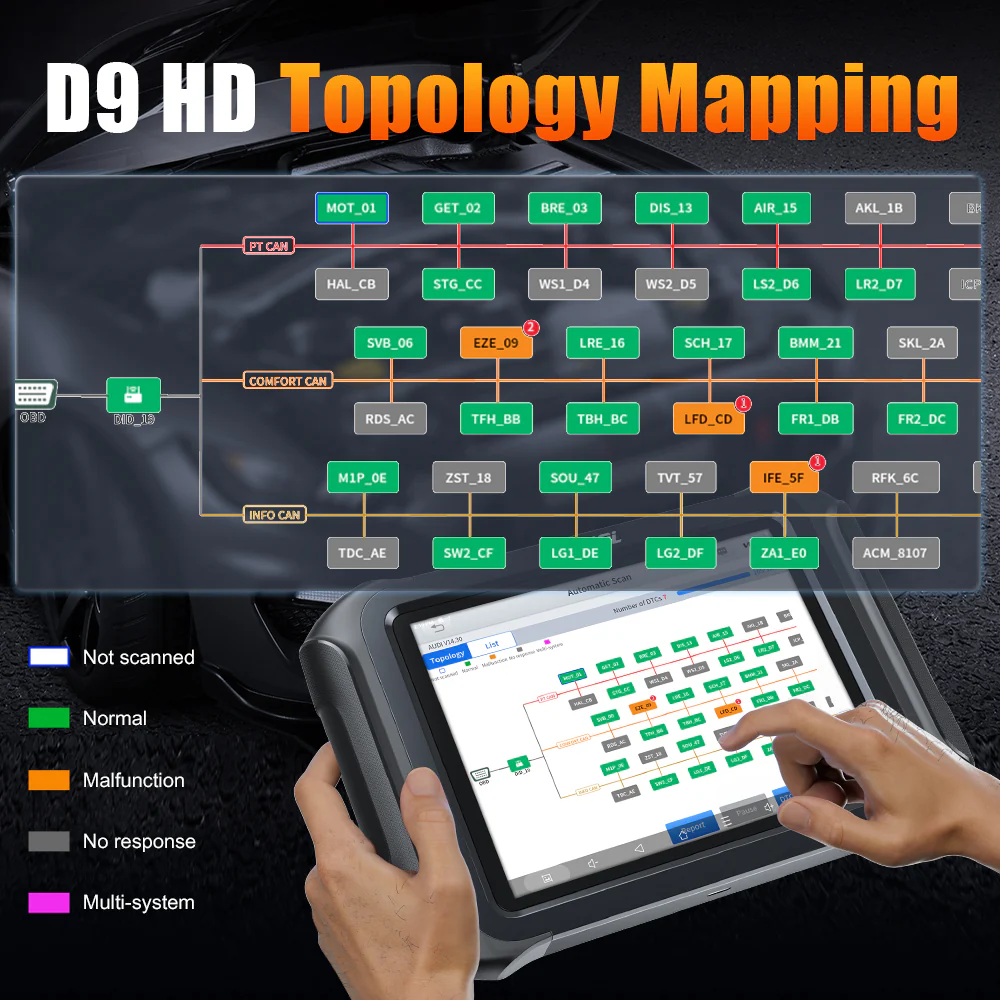

Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
Remote technical support for convenient demonstration, training and increased customer satisfaction
Hot 42 relearn and reset services
Provides fault code guidance for VAG and BMW.
Supports programmable module installation (offline programming) for Ford, Lincoln and Mazda; offline coding for VW, Benz and Mitsubishi
Automatic Wi-Fi updates available in new software releases

Parameters

Operating System：Android 10.0
Processor：4 Core 1.50GHz
Memory：4G+128G
Display：9.7-inch, 1024×768P
Camera：8.0 Megapixel, AF with Flashlight
Auto Input/Output：Microphone, Speaker
Dimension (L×W×H)：313X218X30 mm
Communication Method：Wi-Fi, Wired
Connectivity：Type-C
Working Voltage：9-36V
Battery：6400 mAh, 7.2V
Working Temperature：0 to 40℃
Storage Temperature：-40 to 60℃

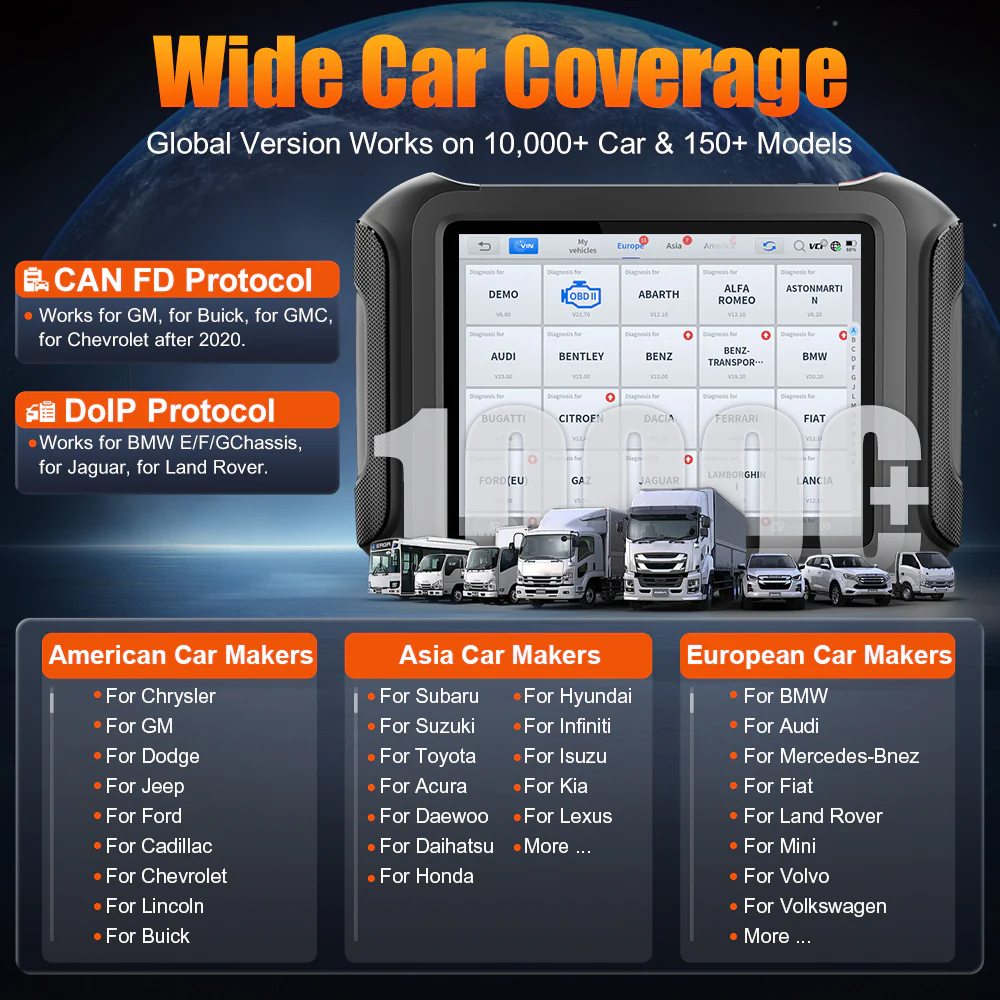

Compatible Protocol：CANFD, DoIP

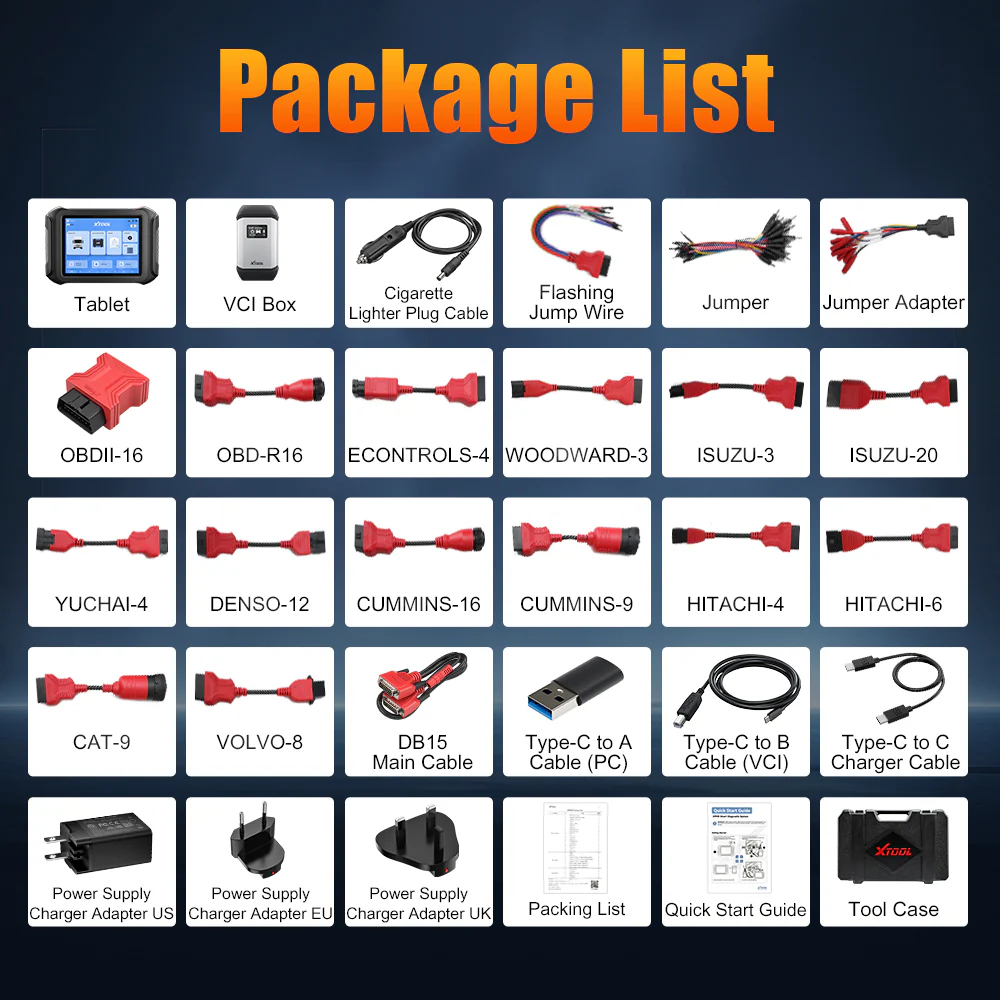

Accessories

Color Carton
Quick Start Guide
Packing List
Certificate of Quality
Tool Case
Desiccant

Main Units

Tablet
VCI Box
USB3.0 Data Cable (Connect to PC)
Charger for Tablet
Power Cable US
Power Cable EU
Power Cable UK

Test Connectors

DB15 Main Cable
DB15 to USB3.0 Main Cable
Battery Clamp Cable
Cigar Lighter Cable
Jumper
Jumper Adapter
OBD-R16
ECONTROLS-4
WOODWARD-3
ISUZU-3
ISUZU-20
YUCHAI-4
DENSO-12
CUMMINS-16
CUMMINS-9
HITACHI-4
HITACHI-6
CAT-9
VOLVO-8
OBD II-16
HONDA-3
BMW-20
BENZ-14
BENZ-38
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16

Please be aware that the diagnostic functions available with vehicle diagnostic scanners can vary depending on the specific vehicle manufacturer, model, and year. Although these scanners provide comprehensive diagnostic capabilities, certain vehicle makes or models may have unique systems or proprietary protocols that could either limit or enhance the available functions.To avoid any trouble to you, please contact us for confirmation before purchasing.
